Sewer Cleaning Hoses

Reference:

Made to unplug pipjing and sewers. Designed for high performance even with minimal curvature radiuses.

SALES UNIT		ROLL
		x Meter

Coefficient of safety of 2.5 times the working pressure. Withstands up to 2500 PSI.
High resistance to abrasion thanks to its novel polyurethane coating.

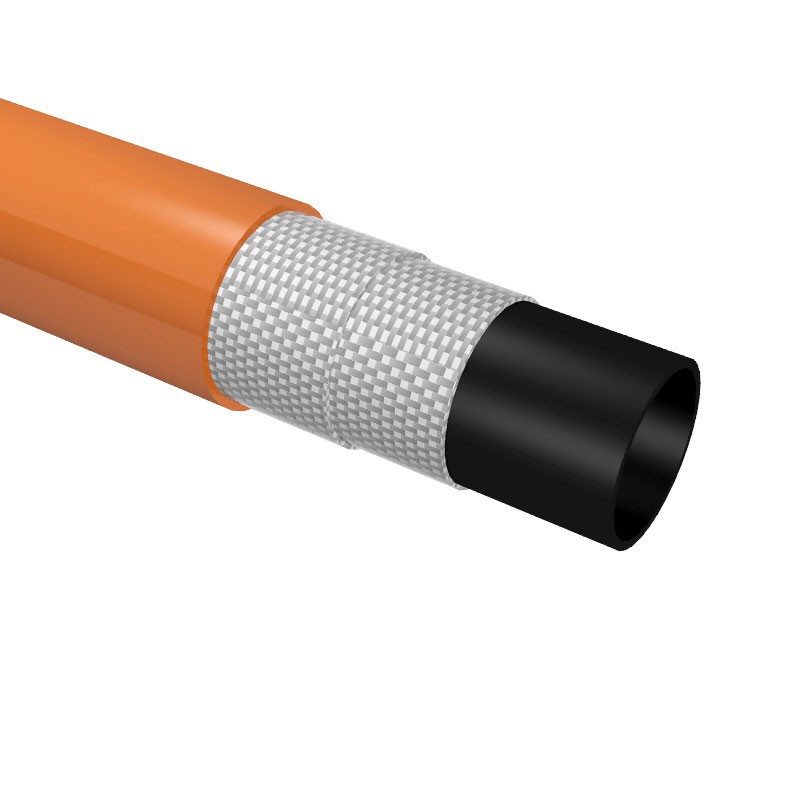

Double reinforcement of synthetic fiber of high resistance.
Prolonged life and high resistance to aging.
Flexible elastomeric polyester inner tube.
Polyurethane coating with high resistance to abrasion, microorganisms and UV rays.

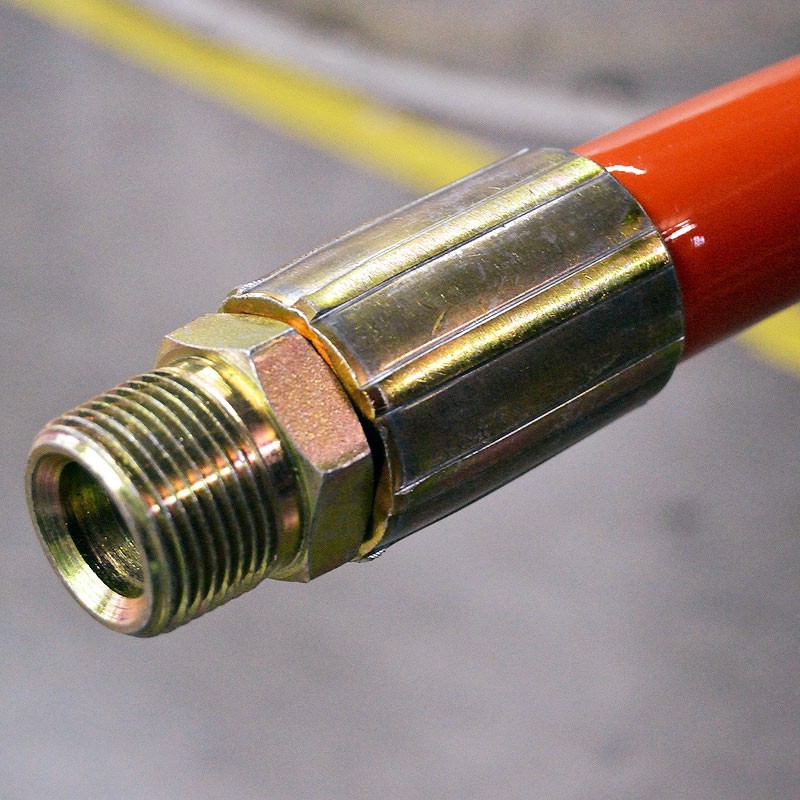

Factory zinc plated terminals that guarantee its correct operation.
Resists temperatures from -40º C to 65º C.

Inside diameter	External diameter	Maximum working pressure	Minimum burst pressure	Minimum radius of curvature	Weight	Length
3/4" )19 mm)	30 mm	2500 PSI (180 bar)	6250 PSI (440 bar)	140 mm	430 gr/mt	150 / 120 mts.
1" (25,4 mm)	37 mm	2500 PSI (180 bar)	6250 PSI (440 bar)	170 mm	730 gr/mt	150 / 120 mts.
1/2" (13 mm)	22,5 mm	2500 PSI (180 bar)	6250 PSI (440 bar)	95 mm	230 gr/mt	Consult
3/8" (9,5 mm)	17,5	2500 PSI (180 bar)	6250 PSI (440 bar)	90 mm	150 gr/mt	Consult
1/4" (6,5 mm)	14 mm	2500 PSI (180 bar)	6250 PSI (440 bar)	70 mm	90 gr/mt	Consult
1/4" (6,5 mm)	14 mm	4000 PSI (280 bar)	10150 PSI (700 bar)	70 mm	90 gr/mt	Consult
